GD-K
GOLD
HS: 90158000
Main Function:
1. Provides on site records of the perpendicularity of drilled holes and the shape of cross sections in high accuracy;
2. Testing the diameter, plumb rate, expanding or shrinkage position and dip direction of the drilling hole cast-in-place pile;
3. Testing the width, plumb rate, expanding or shrinkage position and dip direction of the underground diaphragm wall;
4. Testing sediment thickness;
5. According to the tested results to guide the field construction, optimize the construction process, and improve the construction quality and efficiency.
Main Function:
1. Provides on site records of the perpendicularity of drilled holes and the shape of cross sections in high accuracy;
2. Testing the diameter, plumb rate, expanding or shrinkage position and dip direction of the drilling hole cast-in-place pile;
3. Testing the width, plumb rate, expanding or shrinkage position and dip direction of the underground diaphragm wall;
4. Testing sediment thickness;
5. According to the tested results to guide the field construction, optimize the construction process, and improve the construction quality and efficiency.

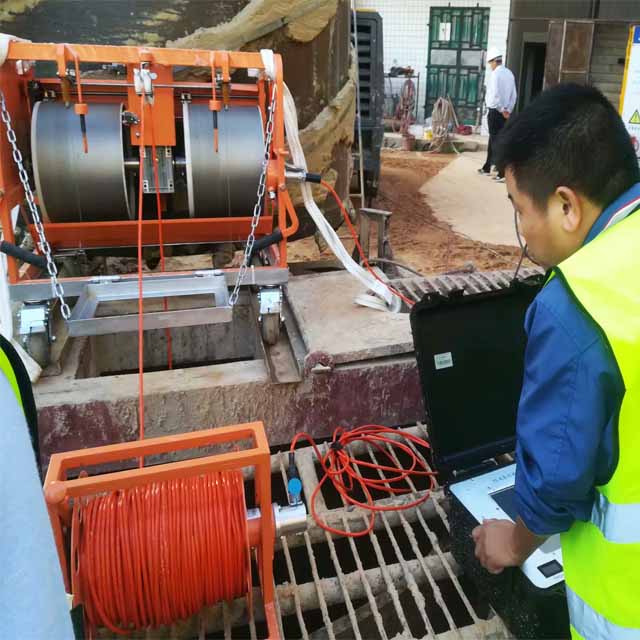

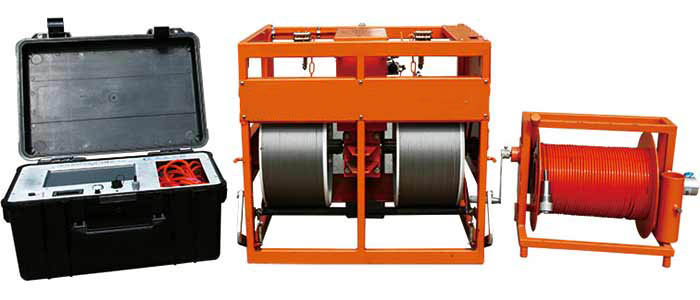

Host unit | |||||
Power Supply | Winch:AC140V~260V,50Hz; Host and sensor device: DC60V high energy lithium battery powered, charge 6 hours can work continuously for 24 hours. | ||||
Power supply protection circuit | Equipped with two built-in non-fuse breakers (5 A and 5 A), a leakage breaker (20 A) and an overvoltage protection circuit | ||||
Operation mode | Touch screen or mouse | ||||
Display mode | 12.1 inch color bright LCD,display precision 1280 * 768, adjustable backlight | ||||
Processor | High performance low power embedded dual core processor. | ||||
Storage | 8G TF Card | Operate System | Linux system | ||
Digit interface | USB2.0,to U Disk can copy files, to laser printer can print directly | ||||
Control function | Winch rising and falling, ultrasonic transmitting and receiving, sediment probe working or stopping, etc. | ||||
Record mode | Fully digit | Sound speed calibration function | Yes | ||
Dimension | 580mm×440mm×290mm | Quality(KG) | 25KG | ||
Operating temperature | -10℃~+50℃ | Humidity | 0~90% |

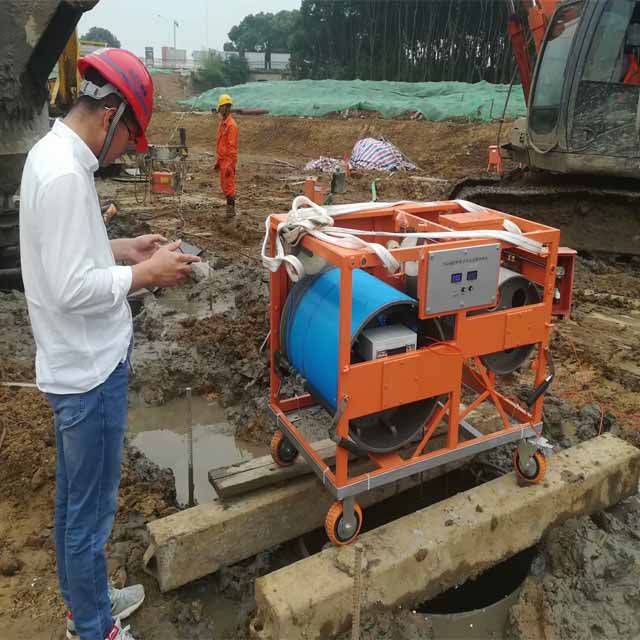

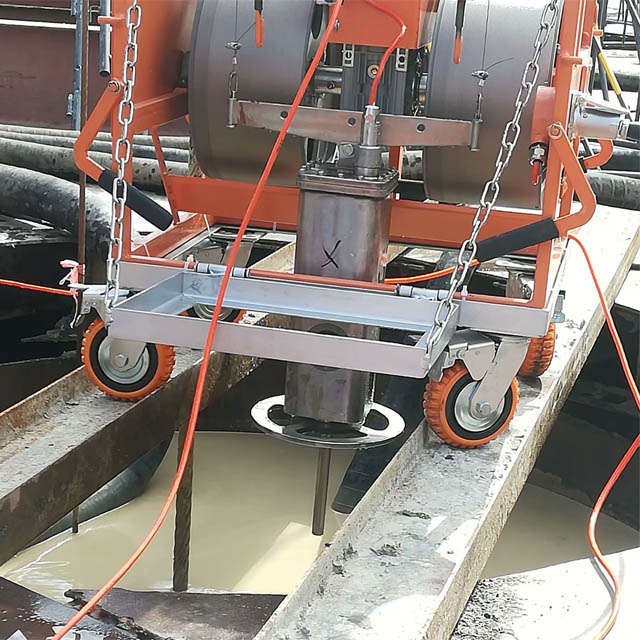

Ultrasonic sensor device ( measure the shape and perpendicularity) | ||||
Measuring Diameter/Width | Method | Ultrasonic echo sensing system | ||
Direction | Direct recording in four directions (X-X' and Y-Y') | |||
Range : | <Φ2800mm:Φ450mm~Φ3600mm;>Φ2800mm:Φ2500mm~Φ7200mm; | |||
Accuracy: | ±0.2% at full scale | |||
Ultrasonic: | Frequency:90KHz; Power: 8 W | |||
Dimension | 130mm×130mm×370mm | Quality(KG) | 18KG | |
Operating temperature | -10℃~+50℃ | Humidity | 0~90% |
